BẪY HƠI NHIỆT ĐỘNG - THERMODYNAMIC STEAM TRAP
Catalogue: Click here
Ứng dụng: Hơi nóng / Application: Saturated Steam
Thân: Gang dẻo / Body & Cover: Ductile Iron FCD
Disc: SUS304
Áp suất: 16 bar / Pressure: 16 bar
Nhiệt độ: 220oC / Temperature: 220oC
Kết nối: Nối ren, nối bích / Connection: Screw / Flanged JIS10K

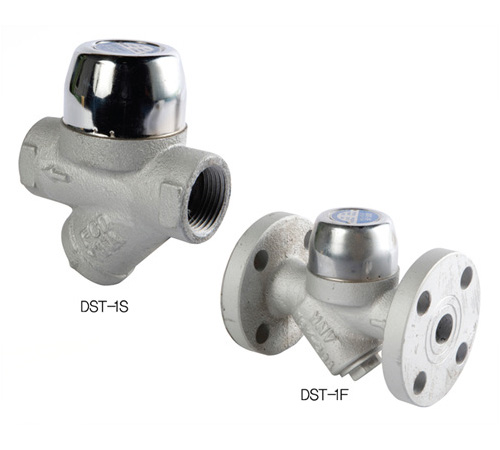

DST-1S/1F
- Insulation chamber(air warm) is adopted to lessen the affect of atmosphere and to improve the most suitable working conditions.
- The maintenance and repair of disc and are easy owing to its material of high-hardness-treated stainless steel and its replaceable seat.
| Working Pressure | Max. 16kgf/cm2 |
|---|---|
| Min. 0.35 kgf/cm2 | |
| Working Temperature | Max. 220˚C |
| Connection | DST-1S : PT Screwed |
| DST-1F : JIS Flanged | |
| Materials | Body : Ductile lron |
| Trim : Stainless Steel |
| Model | Size | d | L | H1 | H | Connection |
|---|---|---|---|---|---|---|
| DST-1S | 15A | PT 1/2″ | 90 | 54 | 104 | PT Screwed |
| 20A | PT 3/4″ | 95 | 56 | 108 | ||
| 25A | PT 1″ | 100 | 58 | 112 | ||
| 32A | PT 1 1/4″ | 180 | 100 | 180 | ||
| 40A | PT 1 1/2″ | 180 | 110 | 205 | ||
| DST-1F | 15A | 15 | 136 | 53 | 103 | JIS 16K Flanged |
| 20A | 20 | 140 | 55 | 108 | ||
| 25A | 25 | 150 | 58 | 113 | ||
| 32A | 32 | 190 | 103 | 185 | ||
| 40A | 40 | 260 | 112 | 206 | ||
| 50A | 40 | 260 | 112 | 206 |
