VAN GIẢM ÁP YNV DRE-1F / NƯỚC, KHÍ NÉN

Mô tả
Van giảm áp lắp bích Lưu chất: Nước, khí nén, chất lỏng Hàng mới 100% XUất xứ: YNV, Korea

Đặc điểm nổi bật

CATALOGUE: DRE-1F/2F

Van Giảm Áp YNV DRE-1F

Ứng dụng: Nước, khí nén, chất lỏng

Vật liệu: Gang dẻo

Kết nối: Nối bích JIS-10K/20K

Áp suất: 10 bar / 20 bar ( Model: DRE-2F)

Vùng giảm: Nhiều vùng giảm đa dạng.

Nhiệt độ: Tối đa 80 0C

Kiểu: Dạng Màng

Specifications
Model DRE-1F DRE-2F
Inlet Pressure (kgf/cm2g) 10 20
Outlet Pressure (kgf/cm2g) 0.35~7 0.35~7
Max Reducing Ratio 10 : 1 10:1
Working Temperature(˚C) MAX. 80 MAX. 80
Working Fluid Watet, Air Watet, Air
Connection JIS 10K Flanged JIS 20K Flanged
Materials Body : Ductile Iron Body : Cast Steel
Trim : Staniless Steel, Synthetic Rubber Trim : Staniless Steel, Synthetic Rubber

dre-1f2f_02

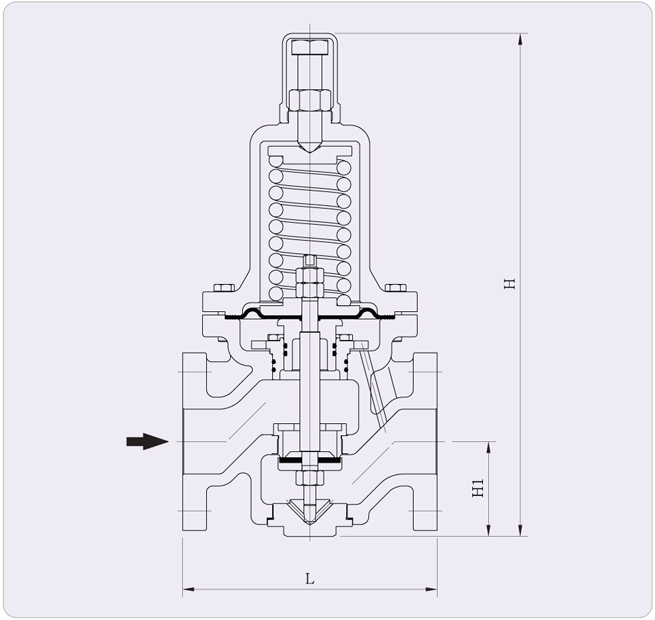

Dimensions
SIZE 15A 20A 25A 32A 40A 50A 65A 80A 100A 125A 150A
PART
L 160 160 160 180 180 190 230 250 300 370 400
H1 65 65 65 76 76 78 95 107 124 145 160
H 335 335 335 400 400 407 505 525 595 725 761



Table for Sizing[DRE-1F(For Air)]



How to use the chart

  • Primary pressure : 5kgf/cm2{0.5MPa}
  • Secondary pressure :  2kgf/cm2{0.2MPa}
  • Pressure differential : 3.5kgf/cm2{0.35MPa}
  • Specific gravity : 1(water)
  • Flow : 24m2/h
  • Obtain a cross point “A” by tracing down vertically from the pressure differential if 3.5kgf/cm2{0.35MPa} L on the top up to the line of Flow 24m3/h. As the point “A” is between size 50 and 65mm. select safer size 65mm.
  • Same conditions except
  • Specific gravity : 0.6
  • Obtain a cross point “B” by tracing down vertically from the pressure differential of 3.5kgf/cm2{0.35MPa} up to the line of specific gravity 1.0 and move in paralled with the slant line up to the cross point “C” on the line of the specific gravity 0.6 Trace down vertically to the point “D” in the cross line of Flow 24m3/h. As the point “D” is between size 40 and 50mm. select safer size 50mm.
dre-1f-for-air
