BẪY HƠI DẠNG BY PASS YNV BST-1S - BY PASS STEAM TRAP
Ứng dụng: Hơi nóng - Chuyên cho các hệ giặt ủi, dệt nhuộm.
Thân: Gang dẻo
Internal & Float: SUS304
Áp suất: 16 bar
Nhiệt độ: 220oC
Kết nối: Nối ren
BST-1S

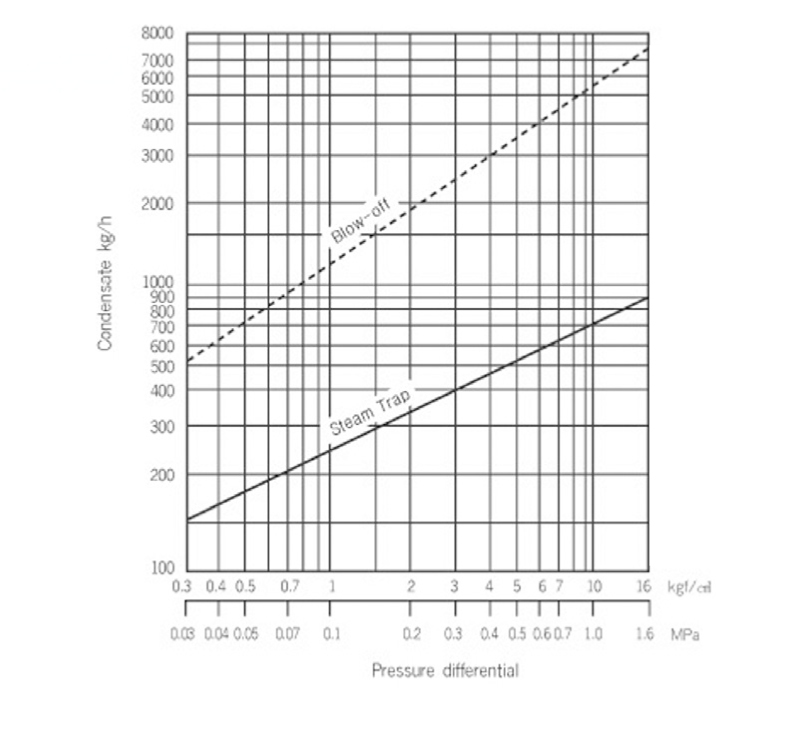

- A built-in-pass valve allows to easily blow-off larger flow at initial operating and/or admissible flow into trap while opening the valve by handle.
- This type is useful to steam mains, especially suitable for laundry machines, and dyeing machines.
| Working Pressure | Max. 16kgf/cm2 |
|---|---|
| Min. 0.35 kgf/cm2 | |
| Working Temperature | Max. 220˚C |
| Connection | PT Screwed |
| Materials | Body : Ductile lron |
| Trim : Stainless Steel |

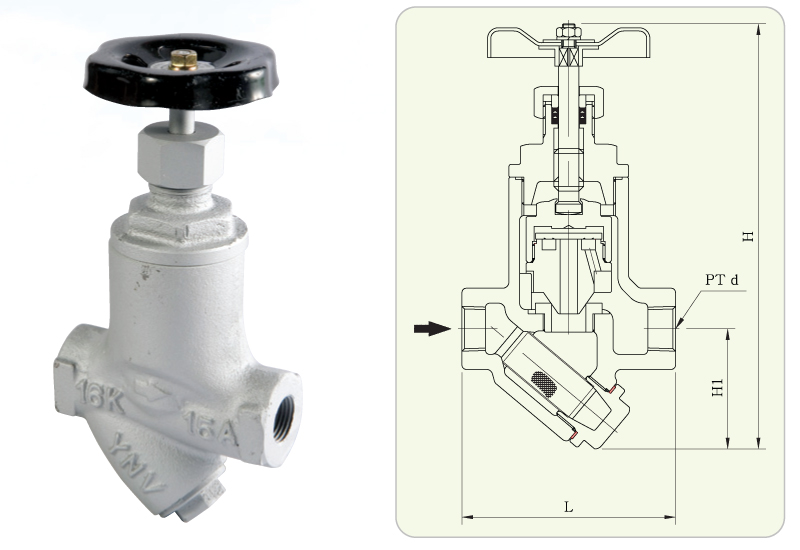

| Size | d | L | H1 | H | Connection |
|---|---|---|---|---|---|
| 15A | PT 1/4″ | 100 | 58 | 203 | PT Screwed |
| 20A | PT 3/8″ | 100 | 58 | 203 | |
| 25A | PT 1″ | 110 | 62 | 207 |
