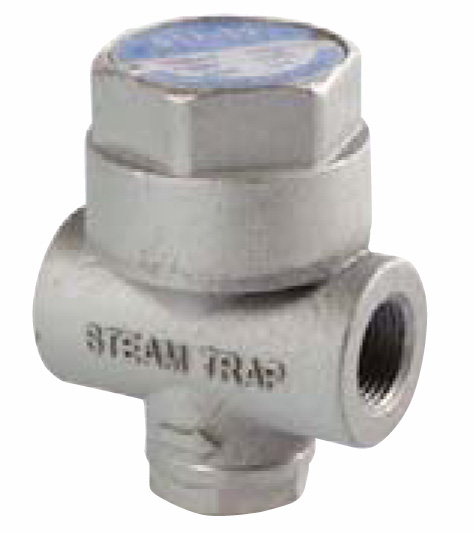

DST-3S
- Simple and Small construction
- No trouble & low repair cost owing to integral construction of body & seat.
- Excellent durability owing to the heat-treated disc and seat.
| Working Pressure | Max. 20kgf/cm2 |
|---|---|
| Min. 0.35 kgf/cm2 | |
| Working Temperature | Max. 250˚C |
| Connection | PT Screwed |
| Materials | Body : Stainless Steel |
| Trim : Stainless Steel |

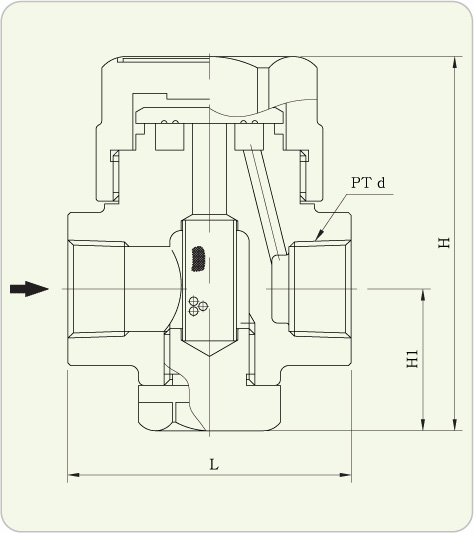

| Size | d | L | H1 | H | Connection |
|---|---|---|---|---|---|
| 8A | PT 1/4″ | 50 | 24 | 63 | PT Screwed |
| 10A | PT 3/8″ | 50 | 24 | 63 |
