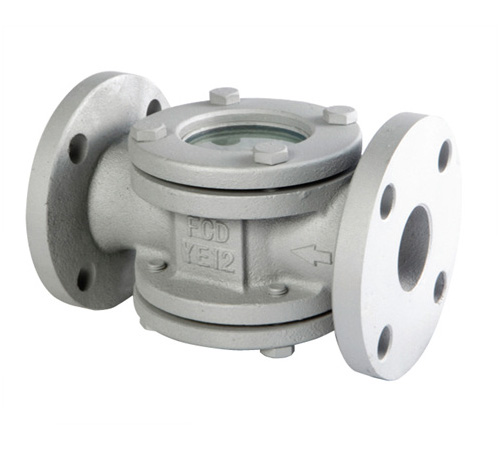

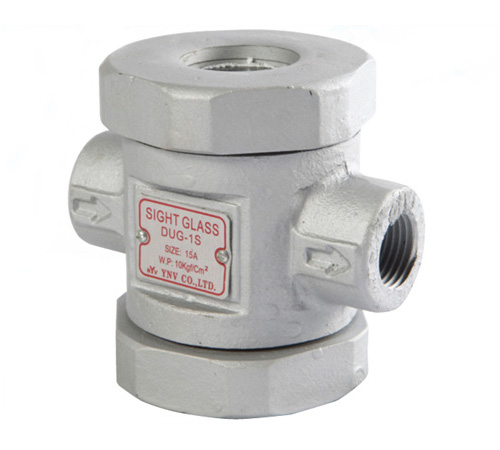

KÍNH QUAN SÁT DÒNG CHẢY YNV DUG-1S/1F
Thân: Gang
Áp suất: 10 bar
Kết nối: Lắp ren, bích JIS10K
Xuất xứ: YNV, Korea
| Working Pressure (kgf/cm2) | Max. 10 |
|---|---|
| Working Temperature(˚C) | Max. 150 |
| Type | Double Window |
| Connection | PT Thread, JIS 10K Flanged |
| Materials | Body : Ductile Iron |
| Trim : Stainless Steel |

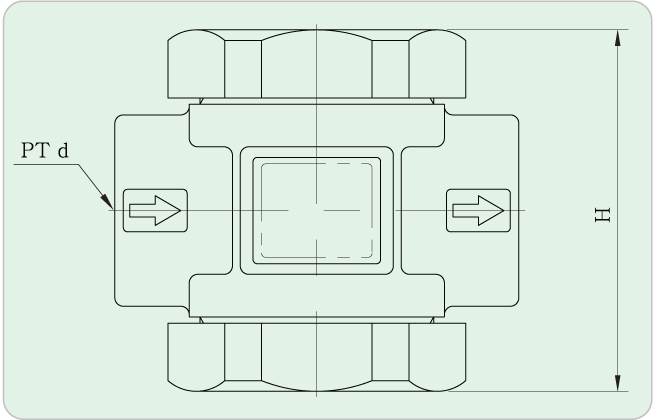

| Size | d | L | H | Connection |
|---|---|---|---|---|
| 15A | PT 1/2″ | 126 | 96 | PT Screwed |
| 20A | PT 3/4″ | 126 | 96 | |
| 25A | PT 1″ | 126 | 96 | |
| 32A | PT 1 1/4″ | 155 | 106 | |
| 40A | PT 1 1/2″ | 155 | 106 | |
| 50A | PT 2″ | 161 | 161 |

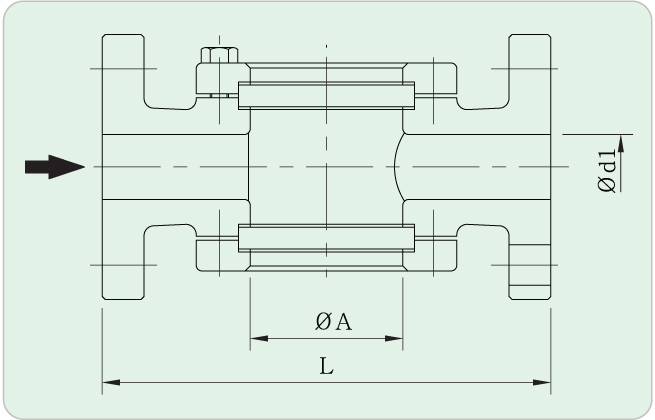

| Size | d | L | H | Connection |
|---|---|---|---|---|
| 15A | PT 15 | 126 | 96 | JIS 10K Flanged |
| 20A | PT 20 | 126 | 96 | |
| 25A | PT 25 | 126 | 96 | |
| 32A | PT 32 | 155 | 106 | |
| 40A | PT 40 | 155 | 106 | |
| 50A | PT 50 | 161 | 161 |
