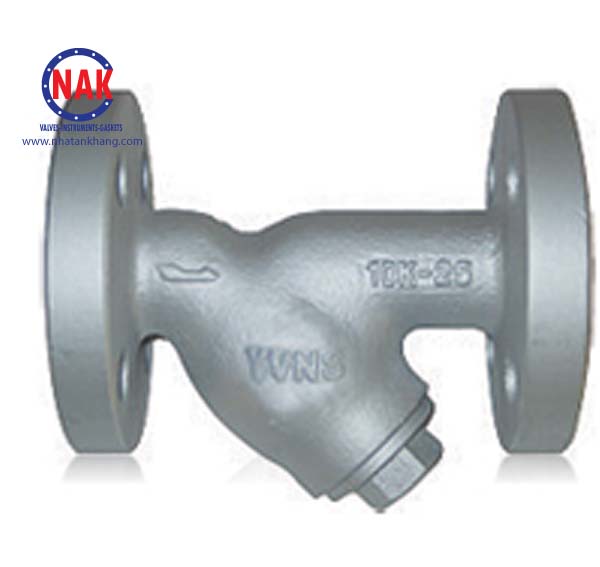

STR-1F
| Working Pressure (kgf/cm2) | Max. 10 |
|---|---|
| Working Temperature(˚C) | Max. 220 |
| Connection | JIS 10K Flanged |
| Materials | Body : Cast Iron |
| Trim : Stainless Steel |
| SIZE | 15A | 20A | 25A | 32A | 40A | 50A | 65A | 80A | 100A |
|---|---|---|---|---|---|---|---|---|---|
| PART | |||||||||
| L | 125 | 140 | 165 | 175 | 195 | 220 | 285 | 305 | 360 |
| H | 65 | 75 | 85 | 95 | 105 | 115 | 206 | 236 | 274 |
| ls | 34.3 | 49 | 63 | 66 | 75.5 | 87.5 | 160 | 190 | 230 |
| ds | 23 | 28 | 38 | 46 | 51 | 59 | 70 | 85 | 106 |
