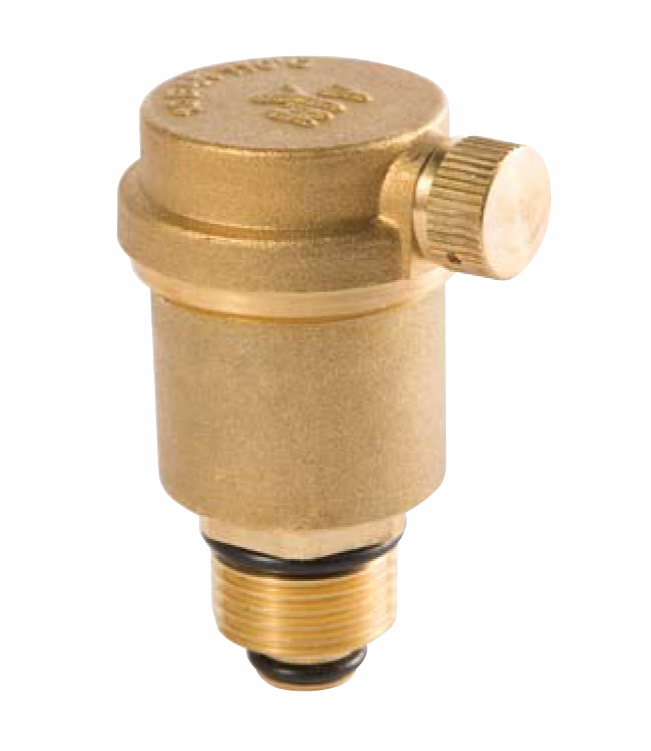

AVW-1SB
Working Pressure (kgf/cm2) | Max. 10 |
---|---|
Working Temperature(˚C) | Max. 80 |
Working Fluid | Water |
Connection | PT Screwed |
Materials | Body : Forged Brass |
Trim : NBR |

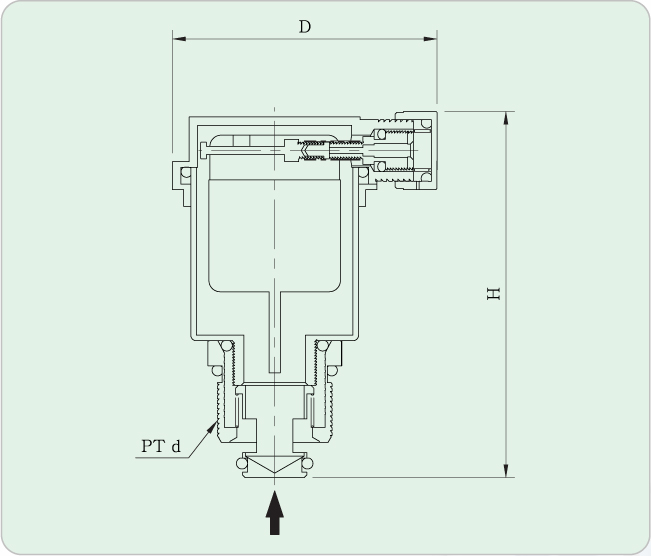

Size | d | L | H | Connection |
---|---|---|---|---|
15A | PT 1/2″ | 58 | 105 | PT Screwed |
Working Pressure (kgf/cm2) | Max. 10 |
---|---|
Working Temperature(˚C) | Max. 80 |
Working Fluid | Water |
Connection | PT Screwed |
Materials | Body : Forged Brass |
Trim : NBR |
Size | d | L | H | Connection |
---|---|---|---|---|
15A | PT 1/2″ | 58 | 105 | PT Screwed |
